Vital statistics for electricity distribution in England, Wales and Scotland

The figures below are approximate (for example they do not take proper account of IDNOs and out-of-area networks). They relate to 2014/2015 across England, Wales and Scotland.

The total net distribution revenue is about £5,987 million a year.

This includes £363 million attributable to network rates and £233 million attributable to transmission connection exit charges.

This total net distribution revenue can be analysed as:

The generation credit estimate is based on 7.6 billion units.

CDCM charges can be further analysed as:

Coincidence correction factors

CDCM coincidence correction factors

Other calculations

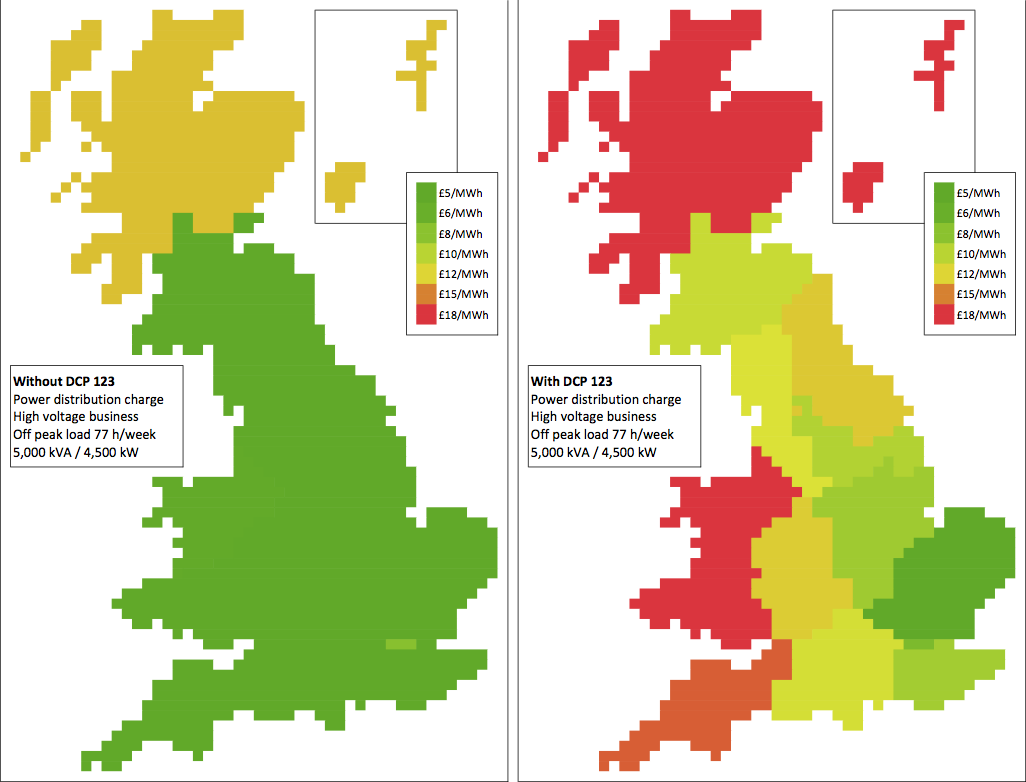

Impact of DCP 123 on half-hourly users who do not consume at peak time,

HV continuous distribution and transmission

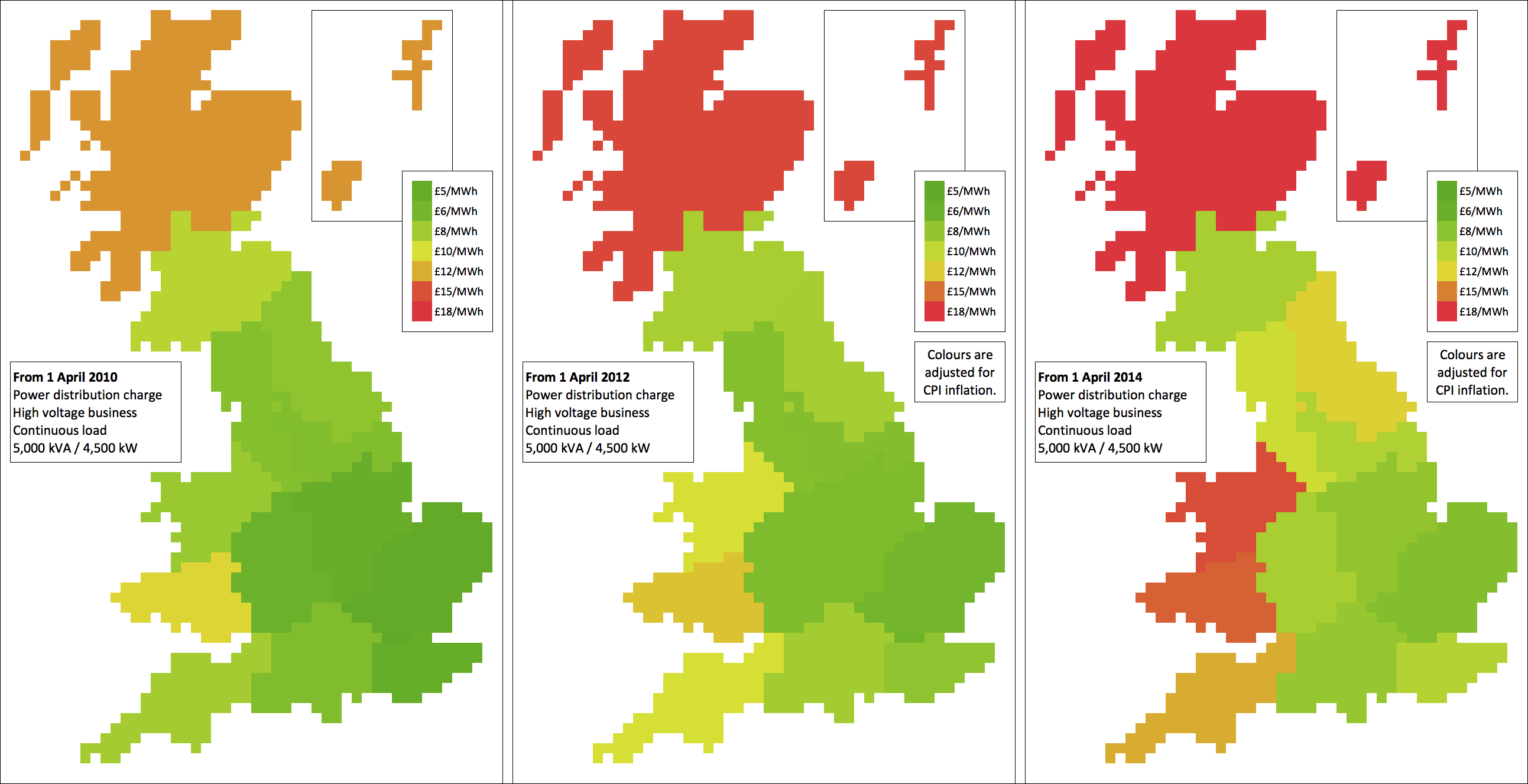

Large HV continuous

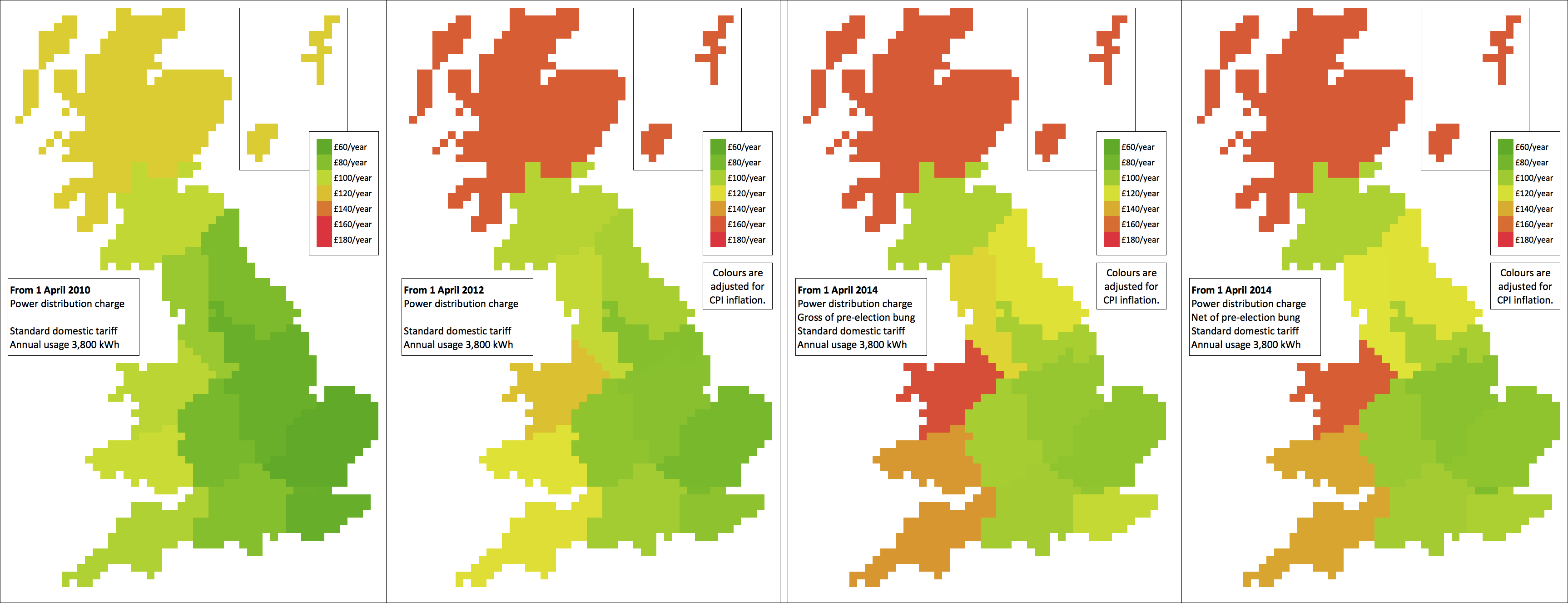

Standard domestic 3,800 kWh

See also EDCM boundary, model generator and links.
